| Features |
- Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
|
- Specifically chamfered barrel for ease of installation.
|
- Color-coded for matching die identification.
|
- UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.
|
- Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.
|
|
| General |
Material |
Copper |
Finish |
Tin Plated |
Wire Size |
6 Str. |
Number of Studs |
1 |
Stud Size |
1/4 |
Tongue Angle |
Straight |
Barrel Length |
Short |
Barrel Shape |
Standard |
Die Color |
Blue |
|

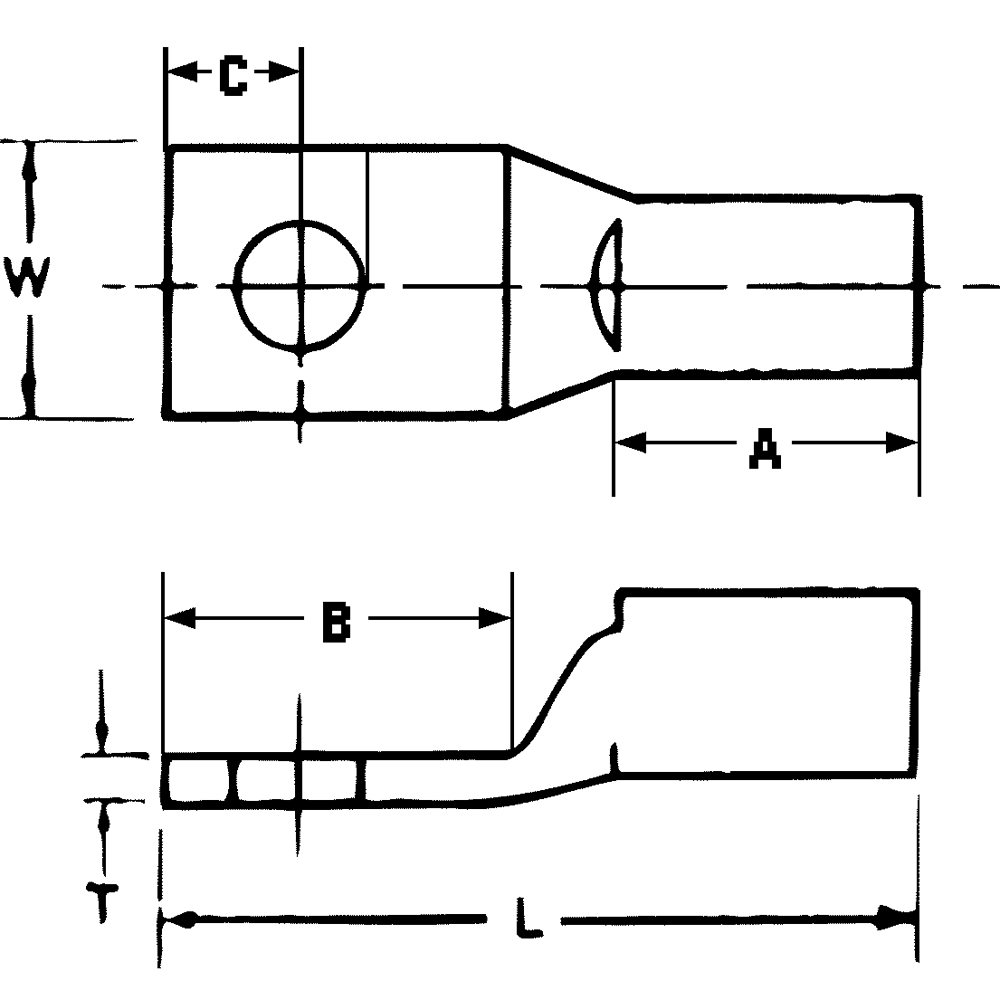

| Dimension Information |
A (inches) |
7/16 |
B (inches) |
17/32 |
C (inches) |
7/32 |
L (inches) |
1 7/32 |
T (inches) |
1/16 |
W (inches) |
7/16 |
|
| Specifications |
Voltage Rating |
35KV |
|
| Tooling |
 Connector & Tooling Chart |
Click Here |
|
| Packaging |
Inner Package |
50 |
Outer Package |
500 |
Package Height |
3.9 |
Package Length |
12.2 |
Package Width |
6.4 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
1.5 lbs. per 100 |
|
| Notes |
- For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
